HPGP is a Replacement of highly toxic hydrazine with low-toxicity so-called green propellants is a giant leap in the development of space industry safety and sustainability. But the implementation of these new fuels is conditioned by an enduring and serious engineering difficulty, the factor of perceived loss in performance, which translates into a significant mass penalty of the spacecraft. This in-depth analysis uses both existing research and flight data of the finest programs such as the Green Propellant Infusion Mission (GPIM) to precisely identify and reconsider this fundamental conflict.
Also Read: We Found a 15% Boost in Retail Revenue Growth With a 10 Minute Green
Walkability Score
Table of Contents
What is Hydrazine? | The Toxic Veteran and Its Metrics
Anhydrous Hydrazine (2N2H4) has dominated the industry as the most commonly used monopropellant, due to its high performance and reliability in over 50 years.3 Its one-step decomposition reaction over a catalyst (usually Shell 405) provides the needed $\Delta V (change in velocity) in satellite orbit-raising, station-keeping and attitude control.
It is dominant with its large Specific Impulse, S, (I sp ), the propellant performance measure (thrust divided by mass flow of propellant).
The Safety Penalty for Green Propellants

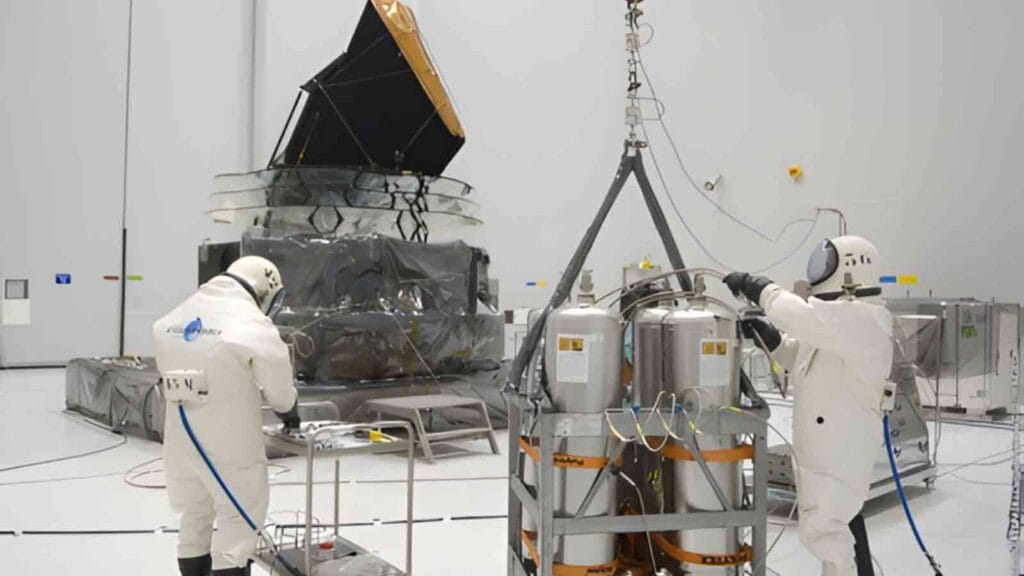

The main weakness of hydrazine is a very poisonous nature of this fuel. It is highly carcinogenic and volatile which is why the Self-Contained Atmospheric Protection Ensemble (SCAPE) suits have to be used at every fueling process. This results in:
Expensive Cost of operation: Light intensity, specialized equipment and widespread health checks.
Safety Hazard Classification: According to such regulatory agencies as the U.S. Air Force, Hydrazine external leakage belongs to the category of the so-called Catastrophic hazards.
Delay Delays on launch schedule Fueling tends to be the critical path in the launch schedule because of the strict safety requirements.

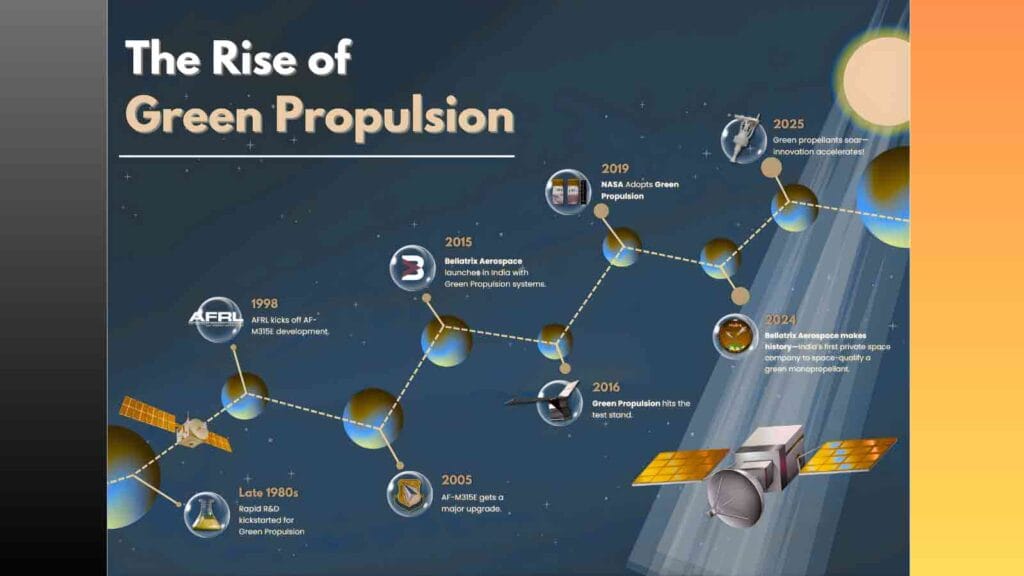

The Rise of the High-Performance Green Propellants (HPGP)?
Energetic Ionic Liquids (EILs) have become a target of the search of less hazardous but high performing propellants. Two dominating HPGP families which are flight proven are:
AF-M315E (ASCENT): A blend, based on hydroxylammonium nitrate (HAN), developed by the U.S. Air Force Research Laboratory (AFRL) and its performance was demonstrated in the GPIM mission of NASA.
LMP-103S: ECAPS (currently Bradford ECAPS) developed ammonium dinitramide (ADN)-based blend, and widely-flown, including the PRISMA mission.
Also Read: DNA Repairs Itself | Discovery That Could End Cancer Forever? 2025 Report
The Cost and Safety Margin
Their low vapor pressure and lower toxicity make the main attraction of these EILs to be safely handled under open conditions using general laboratory personal protective equipment (PPE), and SCAPE suits are not always even necessary. Such a downgrade of the hydrozaines classification (catastrophic to critical) allows purpose of electro-processing of launch to be done far, much easier and ground support costs are also usually cut by up to two-thirds.
Re-considering the Performance Penalty
The performance penalty concept of green propellants has been extensively dismissed by recent flight data especially through the GPIM mission. To make the real comparison, one has to look past the value of Isp nothing alone and take the Density Impulse of (rho sp)the total impulse provided per unit volume.

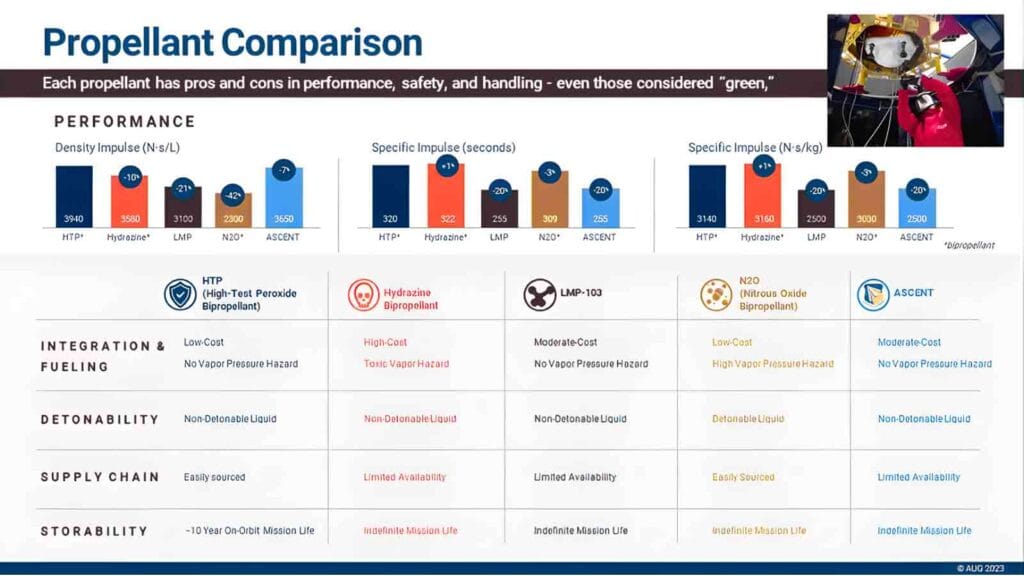

Hydrazine vs Green Propellants Comparison
Recent formulations of HPGP provide a better blend of density and I sp than hydrazine.
| Metric | Hydrazine (Benchmark) | AF-M315E (ASCENT) | LMP-103S |
| Specific Impulse | approx 235 s | ≈ 257 s (+9.4% vs. Hydrazine) | ≈ 252 s (+7.2% vs. Hydrazine) |
| Density | 1.00 gcm^3 | 1.47 g/cm³ (+47% vs. Hydrazine) | 1.25 g/cm³ (+25% vs. Hydrazine) |
| Density Impulse | 235 g. s/cm^3 | 377.7 g·s/cm³ (+60% vs. Hydrazine) | 315 g·s/cm³ (+34% vs. Hydrazine) |
Note: The Isp of AF-M315E is often cited as up to 12% higher than hydrazine.
1) The Delta V and the System Mass Equation: This equation calculates the system mass and the difference in velocity between the initial and final periods before and after the experiment, respectively (Fearn-Banks, 2008, p. 1). System mass and System Delta V Equation: This equation is the system mass equation, indicating the difference in mass (M 1 ) between the beginning and ending periods of the experiment before the test and after the test, respectively (Fearn-Banks, 2008, p. 1).
The penalty is very complicated and it relies on the mass-constricted and volume-constricted mission. Volume-Constrained Missions (e.g., CubeSats)In small satellites with the size of the propellant tank being physically constrained (e.g. by a cube), the determining parameter is Density Impulse.
ΔV∝ρ⋅I sp ⋅V tank
Because propellant volume is 12 in 60 percent higher with AF-M315E, a miniature satellite with the same amount of tankage can attain much higher 13 A-V or smaller tankage can reach the same 14 A-V.15Conclusion: In the case of volume-constrained missions, green propellants can be a huge benefit, but not a liability.
2) Mass-Constrained Missions (e.g., GEO Comsats)In satellites with more mass, attention is given to reducing the overall wet mass ($Mfuel + Mstructure) as much as possible to allow a higher commercial mass to be accommodated. The weight of fuel needed is inversely related to I sp.
M fuel ∝1/I sp
The green propellants (AF-M315E at approximately 257 s) also have a higher Ispiracular compared to hydrazine (approximately 235 s). Impact: They use less mass of propellant to achieve the same change of direction of the spacecraft. This translates to low value of the trophosomatic of the fuel in the fuel station than hydrazine who has a definite advantage.
The TRUE System Mass Penalty
The so-called 20% penalty which was used in previous literature actually was the higher inert-mass of the thruster hardware, rather than the propellant itself, and is currently being remedied.
Thermal Management EILs can be easily broken down at far higher temperatures (around 1000 o C) compared to hydrazine (around 700 o C). This demands more extensive high-temperature-tolerant (such as ceramics and novel catalysts) materials of the thruster and catalyst bed, which initially raised the inert mass, which is represented as M structure.
Smaller Power Demand: This is partly compensated by the fact that green propellants have much normal freezing points (AF-M315E at 16$-80 GEN) than hydrazine (172 C)). Green propellants can be left to cool, which is power and mass-saving in terms of spacecraft, hydrazine systems need the use of constantly powered heaters to avoid freezing, and the issue is especially pronounced during long coast times.
Modern Reality: As the technology of catalysts and Additive Manufacturing (AM) of thruster parts is developed, the net system mass difference is being decreased drastically and in most cases reversed. The net benefit of the reduced values of the lower Mf, obtained through higher values of I sp and lower values of power system mass tend to balance out the heightened inertial mass of thrusters.
Case Study – The Green Infusion Victory (GPIM)
In 2019 the Green Propellant Infusion Mission (GPIM) was the conclusive on-orbit demonstration of the AF-M315E technology.
Purpose: Justify the performance and the functional advantages of AF-M315E.
Outcome: Several orbital maneuvers such as thrusting to remain in attitude control and lowering the orbit were completed successfully as well as the mission. Thrusters were very efficient and dependable.
Significant Discovery: Significantly higher value of the 22I sp performance was found to be superior as compared to the traditional hydrazine systems, which allowed a longer mission time and a greater degree of maneuverability. The safety benefits during the operation were established and ground processing was streamlined and the technology adopted by NASA, DoD and commercial sectors.
Conclusion of GPIM: The mass penalty is not the propellant, but a new generation of high-temperature-compatible thruster hardware is needed. This hardware is maturing (TRL 8) and when integrated with the rest of the system, the mass budget is favorable to the green propellants as it promises to provide more payload mass (or mission life) because it is more fuel-efficient (higher, I -G ).
The Future – Full Infusion and the Bottom Line
The narrative has been reversed; green propellants are no longer a less capable and safer alternative. They represent not only a higher level of safety, but as importantly, a higher level of volumetric performance (of the products) or control (of the products) [rho prox. Isp]) and compete with Mass-based performance (Isp).
Commercial Infusion: Commercial producers such as Bradford ECAPS are capable of providing complete propulsion systems relying on LMP-103S in satellites of small size, (small CubeSats) and larger telecommunication systems.
Next-Generation Design: Lately, attention is paid to Additive Manufacturing (AM) of the parts of the thruster. AM enables engineers to design complex, lightweight geometries with high-quality materials (e.g. ceramics or refractory alloys) within reasonable capability of managing the elevated temperatures of the combustion processes to directly address and remove the inert mass penalty.
Sustainability: In addition to safety, the products of the decomposition of green propellants (mainly, H 2 O, CO 2, N 2 ) are much less corrosive and toxic to the environment, compared to those of the decomposition of hydrazine.
The decision has now been made easy: mission critical application, the large value of sp, the low cost of operation offered by the new generation of HPGPs coupled with its safety benefits makes the choice of expecting high value quite easy compared to the veteran which is toxic. It seems that the time and expense of requalification of the system is the sole trade-off left, and not necessarily an intrinsic technical penalty.
Frequently Asked Questions (FAQs)
Why are green propellants less efficient than hydrazine?
It boils down to chemistry. Hydrazine decomposes into a very energetic mix of hydrogen, nitrogen, and ammonia gases in a simple, highly exothermic reaction. Green propellants often have more complex molecules and combustion products that carry away less energy, resulting in a lower exhaust velocity and thus, lower specific impulse.
Is the 20% mass penalty worth the safety benefit?
There’s no universal answer. For missions near Earth with frequent human handling (like on the ISS), the safety benefit is enormous. For deep-space missions where every gram counts for scientific payload, the penalty can be prohibitive. The decision is a constant trade-off between operational safety and mission capability.
Couldn’t we just make a bigger satellite to compensate?
This is a common misconception. A “bigger satellite” means a larger, more expensive launch vehicle. Launch costs are typically calculated per kilogram. A 20% increase in satellite mass could mean a cost increase of tens of millions of dollars, often outweighing the savings from safer ground processing.
What is the most promising “next-generation” green propellant?
Beyond current options like AF-M315E, research is focused on Advanced Electric Propulsion (e.g., Hall-effect thrusters) which offers far higher efficiency but with much lower thrust. Another area is nitrous oxide blends and other “energetic ionic liquids” that aim to close the performance gap with hydrazine while maintaining low toxicity.
Are any major satellites currently using these green propellants?
Yes! The shift is happening now. The NASA GPIM (Green Propellant Infusion Mission) successfully demonstrated AF-M315E in orbit. Furthermore, many new constellations of small satellites (like Planet’s SkySats) are adopting green propellants because their shorter mission lifetimes and lower budgets make the safety and cost savings on the ground more attractive than maximizing payload mass.
